  • Product description: China Manufacturer Fully Automatic Pallet Stretch Wrapping Machine

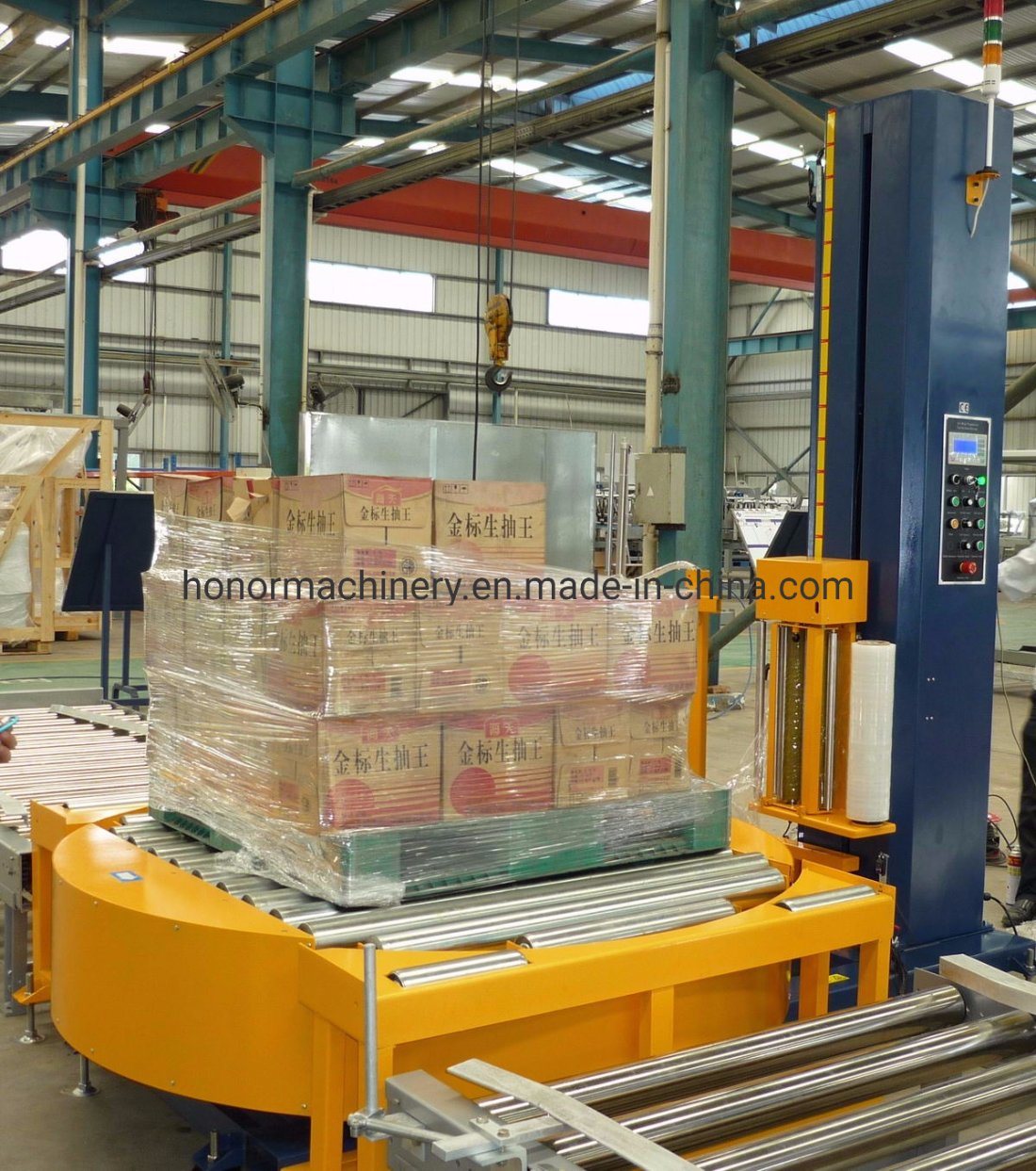

Rotatable pallet wrapping machine

fully automatic pallet stretch wrapping machine

Features:
>> This is conveyorized wrapper for automated unmanned packing lines.
>> PLC controlled, pallets can be automatically wrapped and covered on the top simultaneously (optional) to be protected against dust & moisture, and achieve perfect exterior looking.
>> Automatic stretch film clamp & cut, pneumatically driven.
>> Automatic film wiping device to stick film to pallets after wrapping.
>> Independent electric box with touch screen interface as standard option.
>> Film tension, turntable speed, carriage speed & conveyor speed adjustable.
>> Power stretch film carriage, ratio 250%, film savings.
>> Hardened ring bearing structure turntable for extra heavy loads, more reliable, and lower noise level.
>> Troubleshooting shown on the screen.


Specifications:
Turntable diameter: 1800mm, with motorised rollers
Turntable speed: 3 - 15rpm, soft start & stop
Turntable height: 456mm
Max load weight: 2500kgs
Wrap height: 2100mm
Wrapping settings: wrapping cycles /top wraps /bottom wraps /overwrap
Carriage speed: 5 meters/min max
Conveyor speed: 3 - 12 mts/min
Clamper type: scissor type clamper
Cutter type: instant heater
Turntable motor: 0.75kw
Pre-stretch motor: 0.2kw
power stretch film carriage

Carriage lifter motor: 0.37kw

Conveyor motor: 0.75kw
Power supply: 3PH 380VAC, 50/60Hz
Air pressure: 0.4-0.7Mpa
Film type: stretch film thickness 17-35microns, width 450-500mm, paper core 76mm, max weight 18kgs






ring bearing structure turntable                   film clamp, cut & wipe
Options:
1. Turntable diameter 2000mm and/or wrap height 2400mm, 2600mm, 2900mm.
2. Touch sreen user interface and/or standalone electric box.
3. Safety fencing for better protection of operators.
4. Infeed/outfeed conveyors.
5. HN17 Top sheet dispener system to wrap the top of pallets.
