Pouch Bag Packing Machine

  • Product description: Automatic tea sachet bag liquid sauce pouch bag packing machine Oil sauce water fruit juice packaging machine for liquid
Automatic tea sachet bag liquid sauce pouch bag packing machine
Oil sauce water fruit juice packaging machine for liquid



Product display

HN-VD32

FEATURES:

A. High speed and efficiency

B. Famous brand PLC control system, large touch screen, convenient to operate;

C. Film drawing down system by servo motor can minimize the loss with complete automatic warn protection function; horizontal sealing controlled by servo motor can be optional to choose.

D. High automatic, it can complete the whole packaging process, measuring, filling , sealing, date printing , counting, transporting.

E. The contact parts with food is made of 304 high quality stainless steel ensure food safety.

For packing salt or vinegar, the bag former can be changed into stainless steel 316.

Detailed Description

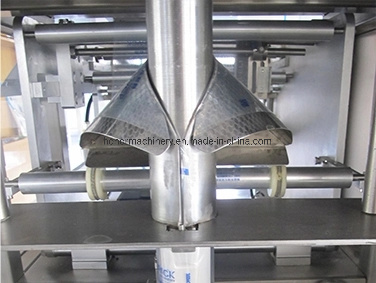

Bag Former Unique

Compared with small machine E32's bag former, this one is quite stable and much longer time to use. Don't judge just by price, but by quality in the first place, you will benefit from using this type packing machine for small bags packing 10-500g.

Horizontal Sealing Bars

Bottom sealing bar is painted with TEFLON in this photo. It is an optional design if you need to protect the sealing bar for longer service time.





Large strong film roll support

As you can see this is a large film roller supporter under the motor. This type is improved a lot, for stable and fast speed working continously.

Electrical Cabinet

Very well organized, with famous brand international standards.


Just durable and great in performance.




Product Information
NAME

HN-VD32

Capacity ≤70 Bags/min
Bag size

(L)50-190 (W) 50-150mm

Film width

100-320mm

Bag type Pillow Bags, Gusset Bags
Film thickness

0.04-0.09mm

Air consumption

0.8ps 0.3m³/min

Total power 2.2KW  220V 50/60HZ
Dimension L1350×W820×H1150mm
Net Weight 300kg




Application:
