HN-50WLA Packing Machine

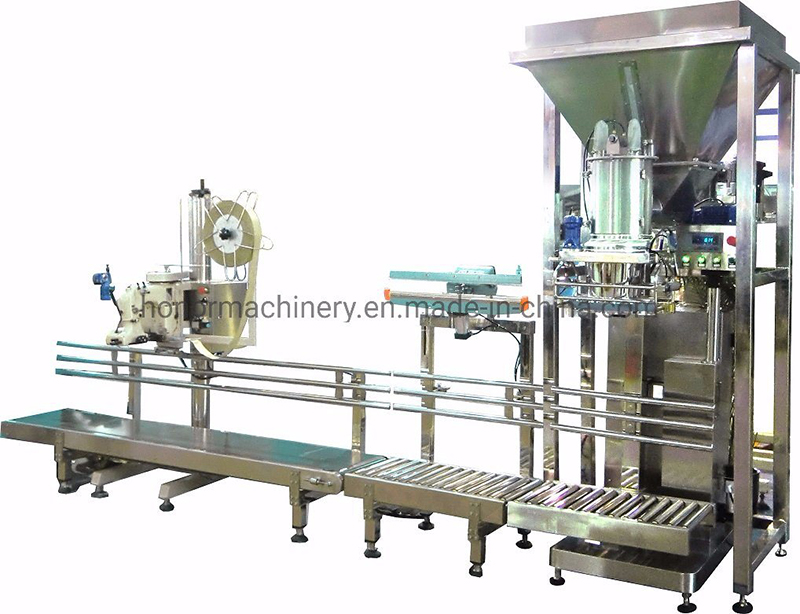

  • Product description: HN-50WLA semi-automatic powder packing machine (10-50kg) Carbon Black powder weighing Filling packaging Packing Machine
HN-50WLA  semi-automatic powder packing machine
(10-50kg) Carbon Black powder weighing Filling packaging Packing Machine





A,Applicable scope: powder, open mouth woven bag
B,measurement parameter:

Weighing range 10-50kg
Weighing accuracy ±0.5%
Weighing rate 180-240 bags/h
Power/current 5kW/10A
Air supply pressure 0.36MPa
Metering mode Suspension sensor
Frequency/voltage 220V / 60 Hz / 3 phase(can change as your requirement)
Power supply mode 3-phase 5-wire system(can change as your requirement)
External dimensions (L*W*H) 4000*2000*3500(mm)
Unit weight 1200 kg

C,Product features
1. This unit is specially designed for ultrafine powdery materials, with unique structure, accurate weighing and stable reliability;
2. The weighing control system is controlled centrally by Canada controller and is designed according to IP54 (dustproof and waterproof) requirement;

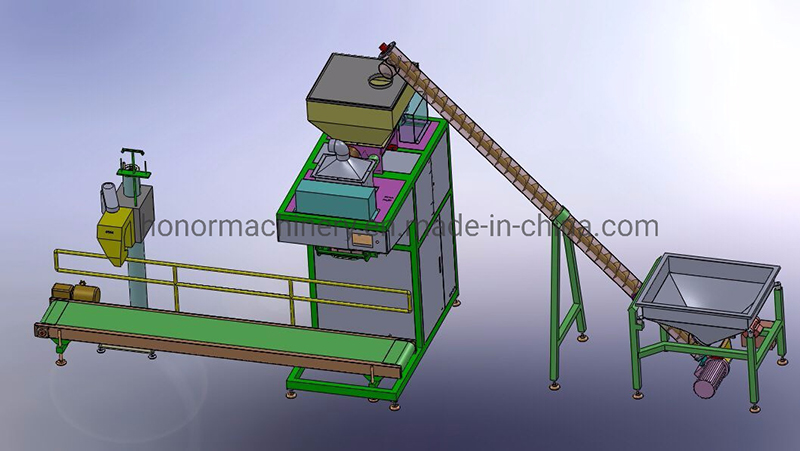

3. This unit consists of fully automatic weighing machine (including bag clamp mechanism), conveyor, bag sewing machine and automatic control cabinet;
4. The mechanical section is fed by horizontal double auger with independent metering and dedusting mechanism, fast metering speed and high accuracy;
5. Options: multiple devices available for free selection (conveyor, bag sewing machine, sealing machine, elevator, air pump, dust collector, metal detector,
over-allowance checker...
6. It can be tailor-made according to the customer's need and site.
