PACKING MACHINE

  • Jumbo Bag Unpacking Machine
  • Jumbo Bag Unpacking Machine
  • Jumbo Bag Unpacking Machine
  • Jumbo Bag Unpacking Machine
  • Jumbo Bag Unpacking Machine
Jumbo Bag Unpacking MachineJumbo Bag Unpacking MachineJumbo Bag Unpacking MachineJumbo Bag Unpacking MachineJumbo Bag Unpacking Machine

Jumbo Bag Unpacking Machine

  • Product description: Ton bag discharge machine Ton bag unpacking machine
Ton bag discharge machine
Ton bag unpacking machine

Tear open bag machine

Product Description

Brief description

Bulk/big/ton bag unloader used in chemical industry, plastics, rubber, pharmaceutical, food and other industries of powder and granular material in the ton bag unpacking discharging operation, such as a large bag (ton bag) plastic resin, carbon black powder and granular materials and food additives and other dry powder and granular materials unpacking and discharging.

Working principle

-  by forklift or electric hoist to enhance the ton bags to the equipment feed port;

manually or automatically open the discharging mouth of ton bags;

open the flow valve and supplemented by vibration device to promote powder or granular ;

material(in the ton bags) to rely on gravity fall into the hopper to complete unpacking discharging work.

SPECIFICATIONS

Technical parameters

Model HN-XL1000-H
Unloading Speed 10-20 bag/h
Air consumption

6m³/hr

Electric Chain Block Speed

10.05m/min

Frame Material Carbon steel, 304,304L / 316L stainless steel
Power & Output

3 phase 380V 50Hz,2.0KW

Total weight

800kgs

Machine Dimension

1800*1800*4560mm

Features

1. Accommodate Your needs.

  • Flexible modular design makes this discharger most suitable for a wide range of applications to best accommodate your needs.

2. Cost efficiency:

  • Dustless operation helps you to save extra cleaning cost. Incorporated dust collector to help you save cost on a separate dust-collection-device.

3. Space Efficiency:

  • Understanding the requirement of your project on envirnment and space, our professional R & D team will design the most appropriate system to suit you needs.

4. Optional Component:

  • Flow-control valve >Dust collector >Exit conveyor>Dumper>Store hopper>Weighing system

Small bag dumping station:

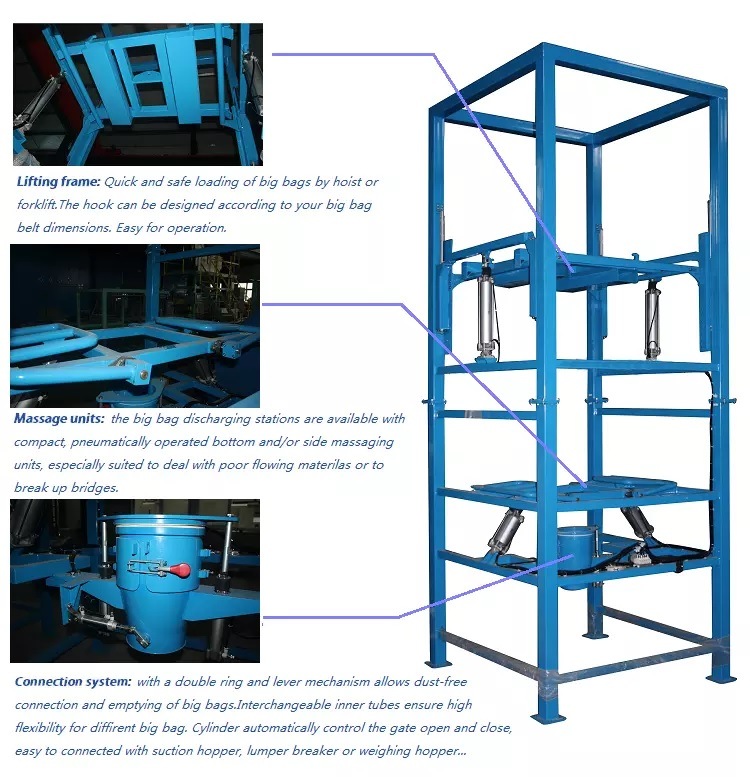

Detailed Images


Programme drawing:
